Bitzer Co2 Ib puag ncig tus phooj ywg Intotionor Racks
Lub bitzer co ₂ triple-parallel chav tsev yog qhov loj me, xa cov khoom txias kev ua haujlwm hloov dua siab tshiab, haum rau kev xav tau qhov kub thiab txias los ntawm {{9}℃rau {{10}℃.

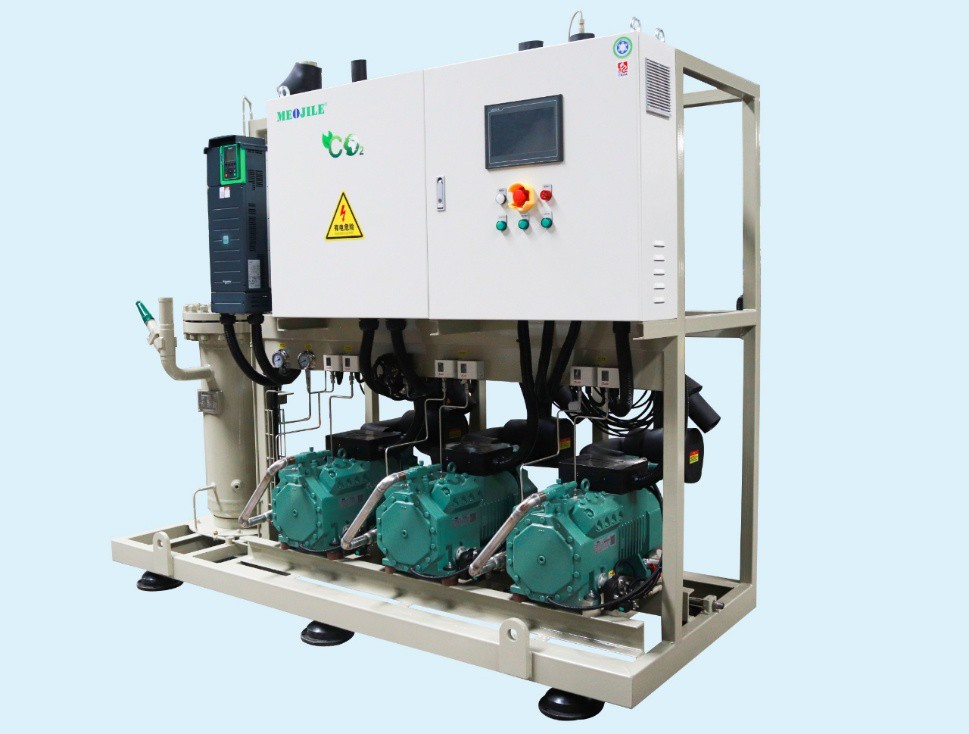

Cov duab kom ntxaws
Khoom nta
Ultra-siab ua hauj lwm & ib puag ncig zoo
(1) Triple-Compressor Rov Ua Dua:
Tswj tau66% muaj peev xwm txiastxawm hais tias ib lub compressor tsis ua tiav, ua haujlwm tsis muaj kev cuam tshuam tsis tau .
Txawj ntse tig sib sau sib npaug refict runciest lub sijhawm (deviation tsawg dua los yog sib npaug ntawm 3%) .
(2) Cov tub yees ntoo ua tub yees
Odp =0, gwp =1, tag nrho txoj kev ua raws li EU F-roj thiab thoob ntiaj teb ib puag ncig kev cai.
Tsis muaj theem-tawm kev pheej hmoo, txo cov nqi ntev ntev kev ua haujlwm.
(3) kev ua tau zoo rau:
Cov roj / dej txias rau ntawm qhov kev kub siab dua txhim khoCop los ntawm 20-25% nyob rau lub caij ntuj sovvs .} pa system .
Yam ua tauSubcritical Hom Hloov(boosts cop los ntawm 30% nyob rau hauv cov mob tsawg-ambient).
(4) Kev tswj hwm kev txawj ntse
Kev faib khoom sib luag:
PlC cia li kho Compressor staging thiab VFD kev ua haujlwm - ceev chav nyob xaiv) .
0 - 100% stepless muaj peev xwm, nrog part-load efficiency (iplv) tshaj li 4.0.
Sib xyaw Tshav Kub Rov Qab:
Tsim80-90 DEGREG KUB DEJ for process heating or space warming, achieving a system EER >5.0.
Kev Tswj Xyuas Chaw Taws Teeb:
Built-in 4g / iot module txuas rauBitzer ntse huabrau kev ua tiav tiag tiag ceeb toom .
(5) Kev Ntseeg Qib-Kev Ntseeg
Bituine Bitzer High-siab compressors:
Qauv Piv Txwv:Bitzer Enoline + T-Series, optimized rau kev sib tw triple-parallel ua haujlwm (140bar wallstand siab siab).
Dual-theem roj sib cais (ua tau zoo dua los yog sib npaug rau 99. 95%), minimizing roj nqa.
Tub rog-qeb piping:
316L stainless hlau hig-siab tubing, tawg siab siab dua los yog sib npaug rau 250bar.
System-dav helium dej sim siab dua lossis sib npaug5 × 10⁻⁷ Mbar · l / s.
Tsawg-txij nkawm tsim:
Sib Nqus-Coupled Roj Twj (Txij Nkawm Rau 100, {{3} {teev).
Kev lim ceev-hloov cartridges (hloov sijhawm tsawg dua lossis sib npaug rau 5 feeb) {2}.
(6) Modular Modular
Kev nthuav dav yooj yim: Txhawb nqa mus txog6 compressors nyob rau hauv parallel(Max 1440hp) .
Ntau hom kev ua haujlwm:
Ib leeg / dual / triple-compressor ua ke tau yoog raws caij ntuj thauj khoom variat.
Yam ua tauCascade Tub Yees(nrog nh₃ lossis HFC tshuab rau -60℃ultra-larps) .
Cov khoom tsis muaj
| 3 compressor racks nrog b itzer piston compressor rau cov chav txias txias | ||
| Chav qauv | MbzbFF 3-75 l (y) -co2 | |
| Lub tub yees | R22(R404A/R507A) | |
| Kev pab fais fab | 380v / 3p / 50Hz | |
| Lub tshuab tua | Tus qauv | 4tes {-25 y |
| Qw | 3 | |
| Evaporating Kub | {{0 {}}℃~ -5 degree | |
| Evap . temp -25 degree |
Cua txias muaj peev xwm (kw) | 31.95 |
| Lub tswv yim fais fab (kw) | 19.05 | |
| Khiav tam sim no (a) | 34.05 | |
| Kua yeeb nkab (hli) | Φ22 | |
| Nqus Yeeb Nkab (MM) | Φ54 | |
| Cov roj Separator qhov hluav taws xob (hli) | Φ35 | |
| Reservoir Inlet (MM) | Φ28 | |
| Zuag qhia tag nrho | L (hli) | 2800 |
| W (hli) | 1100 | |
| H (hli) | 1650 | |
| CUA TXIAS Muaj peev xwm thiab Fais Fab yog suav @ 45 Degree condensing temp {}}} nws siv rau cov cua txias condenser | ||
