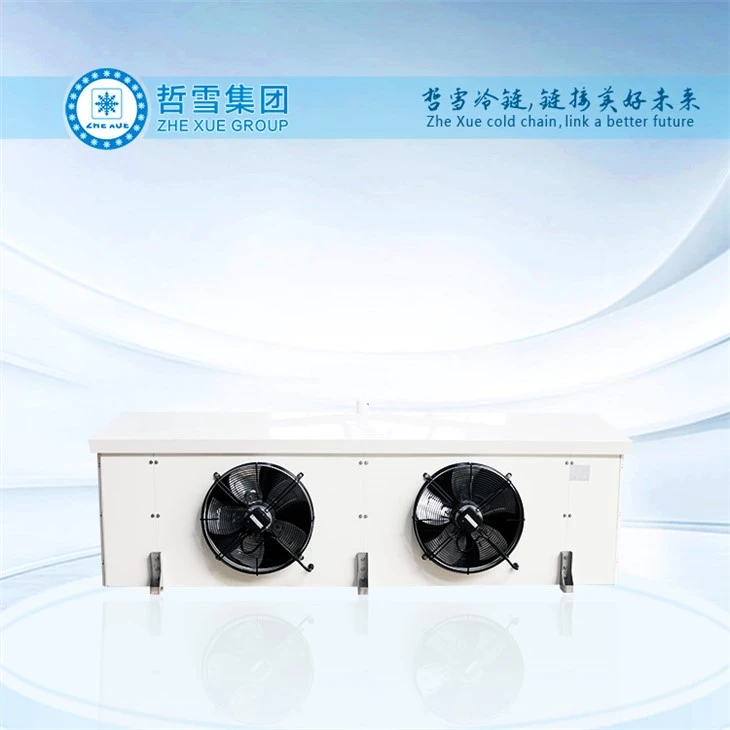

Stainless hlau Ceiling evaporator
Stainless hlau qab nthab evaporator yog corrosion thiab xeb resistant, ua rau nws ib tug ruaj thiab kav ntev xaiv. Stainless hlau muaj cov thermal conductivity siab, uas tso cai rau nws hloov cov cua sov sai thiab ua tau zoo. Qhov no txhais tau hais tias cov evaporators qab nthab tuaj yeem ua kom cua txias sai sai hauv chav txias yam tsis tas siv lub zog los yog ua rau tsis tsim nyog hnav thiab tsim kua muag ntawm lub cev.
Stainless hlau evaporator muaj qhov du, tsis muaj qhov ntxeem tau, uas txhais tau hais tias cov av thiab cov kab mob tsis tuaj yeem nkag mus tau yooj yim, ua rau nws yooj yim los ntxuav thiab tswj. Qhov no ua rau kev ntxuav thiab tshuaj tua kab mob hauv qab nthab evaporators ib qho yooj yim, uas yog qhov tseem ceeb rau kev tswj xyuas zaub mov kev nyab xeeb thiab kev nyiam huv.
Thaum xaiv stainless hlau qab nthab evaporator rau koj daim ntawv thov kev lag luam lossis kev lag luam, nws yog ib qho tseem ceeb uas yuav tau xav txog qhov loj thiab muaj peev xwm ntawm lub tub yees. Lub evaporator loj npaum li cas yuav ua kom ntseeg tau tias koj qhov chaw cia txias yuav khaws cia ntawm qhov kub zoo ib yam yam tsis ua haujlwm dhau ntawm lub compressor lossis nkim zog.
Qauv piav qhia
MJ L 50 3 C 06 R6 -F
MJ: Brand : MAJORROLE
L: L: Loj industrial hom B: Commercial hom H: High efficiency hom
50: Ntxuam dia: 50 txhais tau tias 500mm kiv cua lub cev muaj zog
3 :fwm q
C: Module: C: square T: daim duab peb sab D: Ob chav cua tawm
06 :qeb
r6: cev
-F: S: s / s casing L: aluminium casing SS: s / s casing nrog s / s kiv cua
B: cua tawm ntawm fin sab E: hluav taws xob defrost H: roj kub defrost
W: dej defrost F: customized
Kev ua haujlwm tsis zoo
|
Φ500mm -10P R404A |
|||||
|
C10=10 hli Fin space |
|||||
|
Qauv |
MJL502C10R4-E |
MJL502C10R6-E |
MJL503C10R4-E |
MJL504C10R4-E |
|
|
Lub peev xwm txias (KW) |
SC1(△t=10K) |
21.10 |
30.60 |
33.00 |
43.70 |
|
SC2(△t=8K) |
14.90 |
20.80 |
22.50 |
29.90 |
|
|
SC3(△t=7K) |
11.30 |
15.90 |
17.30 |
23.00 |
|
|
SC4(△t=6K) |
9.50 |
13.10 |
14.10 |
19.00 |
|
|
SC5(△t=6K) |
8.90 |
12.70 |
13.80 |
18.40 |
|
|
tshav kub exchanger cheeb tsam ㎡ |
55.10 |
84.40 |
84.80 |
113.00 |
|
|
tube ntim (dm³) |
19.18 |
28.70 |
27.80 |
38.60 |
|
|
huab cua ntws (m³ / h) |
16400 |
16000 |
24600 |
33400 |
|
|
Tag nrho cov kiv cua (W) |
1680 |
1680 |
2520 |
3360 |
|
|
tag nrho cov kiv cua tam sim no (A) |
2.90 |
2.90 |
4.40 |
5.80 |
|
|
cua ntws (m) |
39 |
38 |
41 |
43 |
|
|
defrost zog (W) |
9000 |
9000 |
14400 |
18000 |
|
|
Cov yeeb nkab dia hauv / tawm (Φmm) |
16/35 |
22/42 |
22/42 |
22/54 |
|
|
suab nrov (db) |
59 |
59 |
59 |
62 |
|
|
hnyav (kg) |
195 |
210 |
290 |
390 |
|
FAQ
Q: Koj puas muaj kev pab cuam tom qab muag rau kev xa tawm?
A: Peb tab tom ua haujlwm nrog qee tus neeg siv khoom rau kev pabcuam tomqab muag thiab koj tuaj yeem koom tes nrog peb ua tus neeg sawv cev thiab chaw pabcuam tomqab muag.
Q: Yuav ua li cas hais txog qhov project txias cia?
A: Koj yuav tsum muab peb koj qhov chaw txias txias, chav tsev kub, qhov hluav taws xob, tub yees, compressor hom, txias txoj kev, cov khoom, cov khoom hnyav thiab lub sijhawm txias, ces peb tuaj yeem xam thiab qhia koj cov tshuab tsim nyog.
