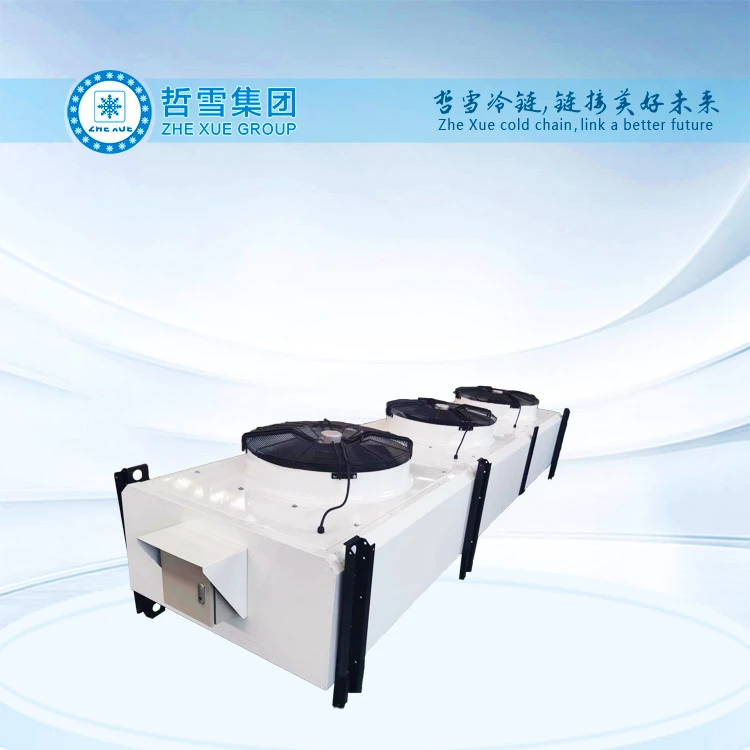

Tsawg kub ob sab tshuab evaporator
Tsawg kub ob sab tshuab evaporator yog ib qho tseem ceeb ntawm ntau lub tshuab tub yees. Nws muaj peev xwm ua kom txias thiab khov cov khoom ua rau nws yog ib qho tseem ceeb hauv ntau qhov kev lag luam, suav nrog zaub mov thiab dej haus, tshuaj, thiab tshuaj.
Qab nthab uas tsis muaj qhov kub thiab txias ob sab tshuab evaporator muaj kev ua haujlwm siab. Vim tias lawv siv lub kaw lus kaw, lawv tuaj yeem ua haujlwm nrog kev siv hluav taws xob tsawg thiab xav tau kev saib xyuas me ntsis, ua rau lawv muaj kev xaiv pheej yig rau ntau lub lag luam. Lub hauv paus ntsiab lus ntawm tsis tshua muaj kub ob sab tshuab evaporator yog yooj yim heev. Nws ua haujlwm los ntawm kev dhau lub tub yees los ntawm lub tshuab hluav taws xob, qhov twg nws nqus cua sov los ntawm ib puag ncig ib puag ncig. Raws li lub tub yees absorbs cua sov, nws evaporates thiab hloov mus rau hauv ib tug roj. Cov roj yog ces compressed thiab rov ua dua.
Cov yam ntxwv tseem ceeb
1. Tsim los ntawm cov txheej txheem European siab heev
2. Sab nraud casing yog s / s lossis galvanized steel ntawv
3. Lub puab casing yog anti corrosive txhuas ntawv thiab cov floating coil tsim yuav tiv thaiv cov yeeb nkab tawg.
4. Siv 15.88mm tooj liab yeeb nkab thiab 12.7mm puab xov tooj liab yeeb nkab
5. Nruab nrog cov lus qhia txuas ntxiv cua
6. International hom sab nraud kiv cua motors & zoo tshaj plaws hom s/s ele. Cua sov
Kev ua haujlwm tsis zoo
|
Φ500mm-4.5P |
|||
|
C04=4.5 hli Fin spacing |
|||
|
qauv |
MJH502C04R6-E |
MJH502C04R8-E |
|
|
Lub peev xwm txias (KW) |
SC1(△t=10K) |
45.40 |
51.26 |
|
SC2(△t=8K) |
30.34 |
34.63 |
|
|
SC3(△t=7K) |
23.11 |
25.72 |
|
|
Thaum tshav kub kub exchanger (㎡) |
127.40 |
169.90 |
|
|
Tube ntim (dm³) |
27.40 |
36.60 |
|
|
huab cua ntws (m³ / h) |
14600 |
13800 |
|
|
Tag nrho cov kiv cua (W) |
1680 |
1680 |
|
|
Tag nrho cov kiv cua tam sim no (A) |
2.90 |
2.90 |
|
|
cua ntws (m) |
38 |
37 |
|
|
defrost zog (W) |
9000 |
9000 |
|
|
yeeb nkab dia (hauv / tawm Φmm) |
22/42 |
28/54 |
|
|
suab nrov (db) |
59 |
59 |
|
|
qhov hnyav (kg) |
215 |
235 |
|
FAQ
Q: Yuav ua li cas hais txog qhov project txias cia?
A: Koj yuav tsum muab peb koj qhov chaw txias txias, chav tsev kub, qhov hluav taws xob, tub yees, compressor hom, txias txoj kev, cov khoom, cov khoom hnyav thiab lub sijhawm txias, ces peb tuaj yeem xam thiab qhia koj cov tshuab tsim nyog.
Q: Thaum twg kuv tuaj yeem tau txais tus nqi?
A: Feem ntau peb hais hauv 24 teev tom qab peb tau txais koj qhov kev nug.
Q: Koj puas tuaj yeem ua peb tus kheej ntim khoom?
A: Yog, koj tsuas yog yuav tsum muab cov qauv tsim thiab peb yuav tsim qhov koj xav tau. Peb kuj muaj cov kws tsim qauv uas tuaj yeem pab koj nrog kev tsim khoom ntim.
Cim npe nrov: Tuam Tshoj Tsis tshua muaj kub ob sab tshuab evaporator, Tuam Tshoj qis kub ob sab tshuab evaporator manufacturers, lwm tus neeg, Hoobkas
