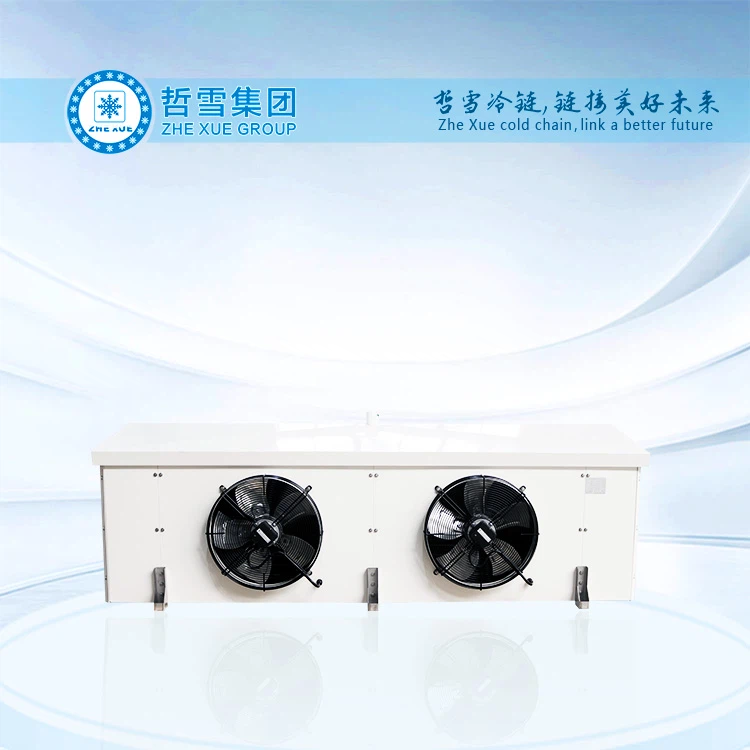

Lub zog txuag ceev khov evaporator
Zhexue hom evaporator yog tsim rau txhua yam kev cia txias rau cov zaub mov, kev cob qhia zaub mov thiab chaw xa khoom. Lub compact tsim ntawm peb cov evaporators txuag tau ntau qhov chaw rau peb cov neeg siv khoom, peb kuj xaiv cov kiv cua sab nraud nrog lub suab qis los tsim kom muaj ib puag ncig zoo. Zhexue evaporators lub peev xwm txias txias yog los ntawm 1.0kw txog 210kw, lawv siv rau Freon xws li R134A, R22, R404A, R507C thiab R407C.
Cov yam ntxwv tseem ceeb
1.Designed los ntawm advanced European technology, ua rau cov khoom ntau efficiency.
2.Cov ntaub ntawv sab nraud yog s / s lossis galvanized steel ntawv nrog electrostatic txau tshuab, ua raws li cov qauv kev nyiam huv.
3.Sing 15.88mm tooj liab yeeb nkab, 9.52mm thiab 12.7mm puab xov tooj liab yeeb nkab, tshwj xeeb ntev ntawm cov kav dej thiab advanced technology ntawm tshav kub exchanger nto ua rau peb evaporator ntau efficiency.
Kev tshuaj xyuas ua ntej kev teeb tsa evaporators
Tom qab unpacking lub ntim txheej, cov nram qab no yuav tsum tau soj ntsuam:
1) Tshawb xyuas seb txhua qhov txuas puas yog xoob. Tag nrho cov khoom yuav tsum tau txuas ruaj khov thiab ntseeg tau.
2) Tshawb xyuas seb cov hniav ntawm cov kiv cua axial yog xoob. Cov kiv cua ntawm cov hniav yuav tsum tau txuas ruaj khov.
3) Tshawb xyuas seb cov kiv cua thiab cov npog tiv thaiv puas nyob rau hauv kev sib cuag. Cov kiv cua yuav tsum tig ywj siab yam tsis muaj kev sib txhuam lossis kev sib tsoo nrog lub hau tiv thaiv.
4) Xyuas seb lub evaporator puas puas lossis deformed vim kev thauj mus los. Yog tias nws puas lawm, nws tsis tuaj yeem ntsia thiab siv.
Kev ua haujlwm tsis zoo
|
Φ500mm -8P R404A |
|
|
|
|
C08=8 hliFin qhov sib nrug |
|
|
|
|
Qauv |
MJN502C08R6-E |
MJN502C08R8-E |
|
|
Lub peev xwm txias (KW) |
SC1(△t=10K) |
36.30 |
43.90 |
|
SC2(△t=8K) |
24.30 |
29.30 |
|
|
SC3(△t=7K) |
18.30 |
21.90 |
|
|
SC4(△t=6K) |
15.20 |
18.30 |
|
|
SC5(△t=6K) |
14.60 |
17.60 |
|
|
Thaum tshav kub kub exchanger (㎡) |
87.20 |
113.70 |
|
|
Tube ntim (dm³) |
26.70 |
35.60 |
|
|
huab cua ntws (m³ / h) |
15700 |
14400 |
|
|
Tag nrho cov kiv cua (W) |
1680 |
1680 |
|
|
Tag nrho cov kiv cua tam sim no (A) |
2.90 |
2.90 |
|
|
cua ntws (m) |
39 |
38 |
|
|
defrost zog (W) |
9000 |
9000 |
|
|
yeeb nkab dia (hauv / tawm Φmm) |
22/42 |
28/54 |
|
|
suab nrov (db) |
59 |
59 |
|
|
qhov hnyav (kg) |
175 |
195 |
|
FAQ
Q: Koj puas tuaj yeem txais OEM tsim?
A: Peb feem ntau txhawb peb Zhexue Hom, tab sis OEM tsim tau txais.
Q: Thaum twg kuv tuaj yeem tau txais tus nqi?
A: Feem ntau peb hais hauv 24 teev tom qab peb tau txais koj qhov kev nug.
Q: Koj puas tuaj yeem ua peb tus kheej ntim khoom?
A: Yog, koj tsuas yog yuav tsum muab cov qauv tsim thiab peb yuav tsim qhov koj xav tau. Peb kuj muaj cov kws tsim qauv uas tuaj yeem pab koj nrog kev tsim khoom ntim.
